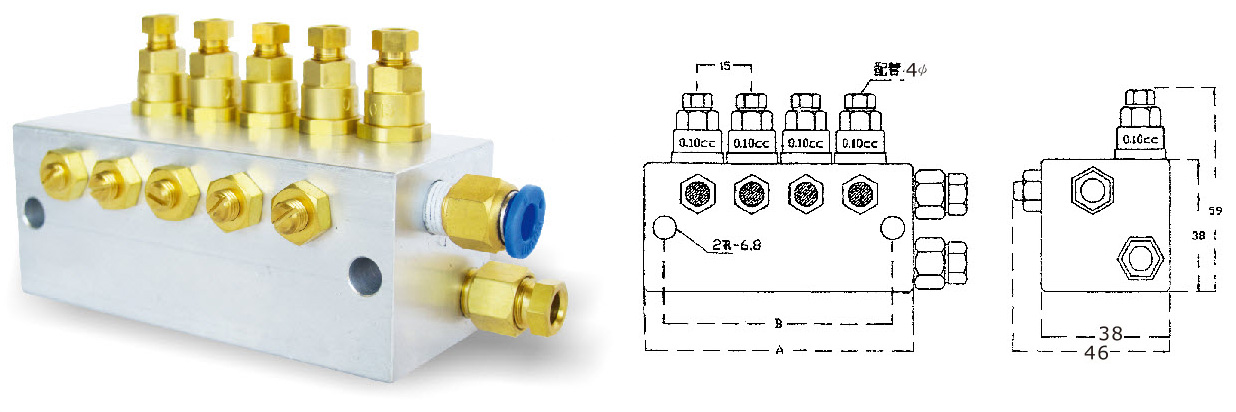

※注：本油雾分配阀搭配脱压式给油机使用※ Note: The mist-distributing valve is used one the oil feeder with pressure relief .型式
Type | 出口数
No. Of Outlet | A | B | 油压Oil Pressure
(Kg/cm 2 ) |
空压Air Pressure (Kg/cm 2 ) | | TKLA-1 | 1 | 34 | 22 | 12-15 | 3-7 | | TKLA-2 | 2 | 48 | 36 | | TKLA-3 | 3 | 64 | 52 | | TKLA-4 | 4 | 79 | 67 | | TKLA-5 | 5 | 96 | 84 | | TKLA-6 | 6 | 110 | 98 |

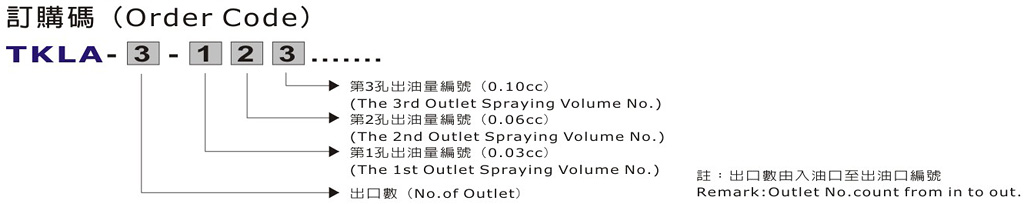

出油量编号No. of Spraying Volume | | 编号No. | 出油量
Spraying Volume
(cc/stroke) | | 1 | 0.03 cc | | 2 | 0.06 cc | | 3 | 0.10 cc | | 4 | 0.13 cc | | 5 | 0.16 cc |
| ▶ | 润滑油经由给油机送进油雾分配阀入油口，而风压则由分配阀上方送入空气。润滑油在与气体的碰撞下产生混合，而形成油雾、油气，再由分配阀喷向加工物表面，产生润滑及冷却效果。油雾混合阀可因工作面之大小，所需油量不同而随时更换。 | | | | | ▶ | The oil feeder injects the lubrication oil into the oil inlet of the mist-distributing valve, and air is compressed into the above inlet of the valve. The oil will mix with air to fro the mist and then the mist will spray out to lubricate and cool the surface of workpiece. The different size of the mist-distributing valve can be changed for the requirements of different machining surface and oil quantity. |
|
